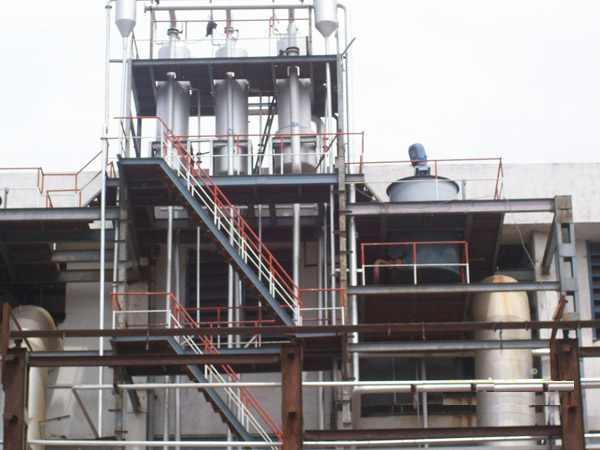

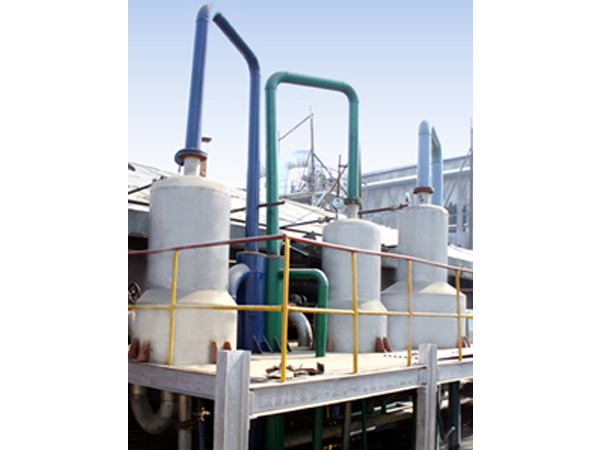

Molasses Conditioner

SED has designed innovative & efficient direct contact molasses conditioners ensuring perfect dissolution of crystals without addition of water and by using heat content of NCG / low pressure vapours and achieved major savings in steam and power in sugar plants.

Distinctive Features:

Trouble free operation:

• No stirrer required thus no troubles associated with using mechanical stirring system like motor alignment, tripping of motor, lubrication etc., which is a big problem with traditional molasses conditioners.
• No flooding.
• Can handle fluctuating vapour pressures.

Design:

• Compact inbuilt static mixer with no mechanical agitation.
• Corrugated shell with strong structured deflectors.
• Light weight Stainless Steel construction.
• 0-1°C approach temperature.
• Variable applications (vacuum or pressure).

Least dilution of molasses:

• No water addition but only low pressure vapours required for conditioning.

High heat transfer:

• Efficient direct contact with vigorous mixing.

Automated control:

• Monitoring of process parameters with full automation.
• Default switchover to manual mode.

Steam economy:

• Utilizes heat content of NCG (otherwise going waste).
• Reduces the exhaust steam consumption by 1% on cane.

Power economy:

• No / Low pumping power requirements.

Other notable features:

• Flexible installation; on pan floor or at centrifugal station.
• No cleaning required.
