Cryogenic Storage tanks

GENERAL FEATURES

  • Production in accordance with 2014/68/EU Pressure Equipment Directive (PED), EN 13458, AD 2000 CODE, ASME (U STAMP), GOST
  • Earthquake resistance design in accordance with Euro code 3
  • Foot design that facilitates transportation
  • Valve group design with outlet in lower camber
  • Design that increases the usage volume
  • High quality paint application with oven curing
  • Non-destructive testing tests in accordance with standards (Radiographic test, Penetrant test, Magnetic Particle Test, etc.)

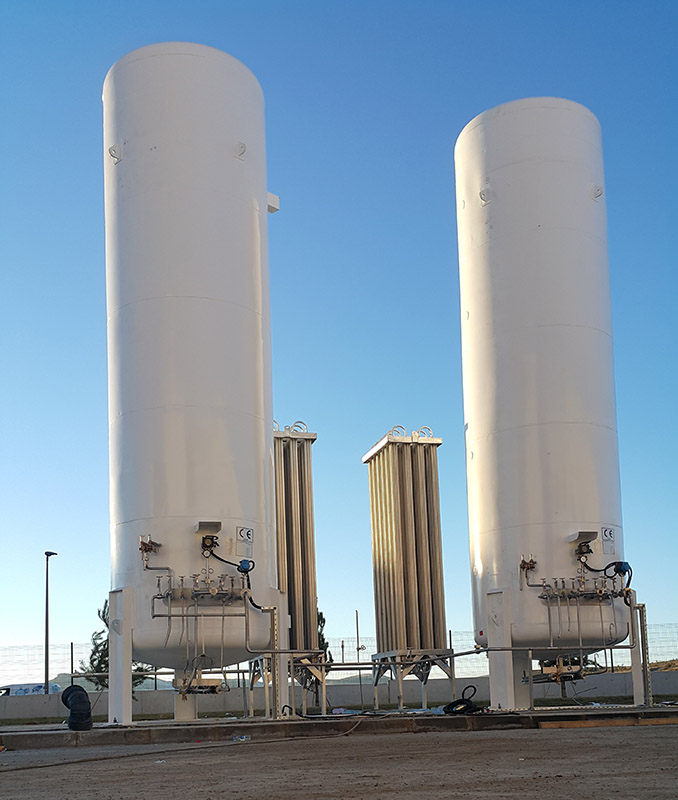

LIN - LOX - LAR STORAGE TANKS

CAPACITYLENGTHWIDTHHEIGHT
5 m³4780mm
2220mm2400mm
10 m³7245mm
2350mm2310mm
15 m³6950mm
2750mm2795mm
30 m³12360mm
2400mm2850mm
50 m³13500mm3000mm3050mm

DESIGN CONDITIONS

Design Code: EN 13458 - ANNEX C, ASME (U STAMP) and GOST
Operating pressure: 5 - 37 bar (MAWP)
Design Temperature: +50 °C / -196 °C
Ambient temperature: +50 °C / -50 °C
Material - Inner Tank: Stainless Steel (according to standard)
Material - Outer Tank: Carbon, Stainless Steel or Aluminum (according to standard)
Insulation: Vacuum, Perlite insulation or PUR insulation
Radiographic Control: In accordance with the design standard
Liquid Penetration Test: In accordance with the design standard
