Cryogenic Vaporisers and Heat Exchangers

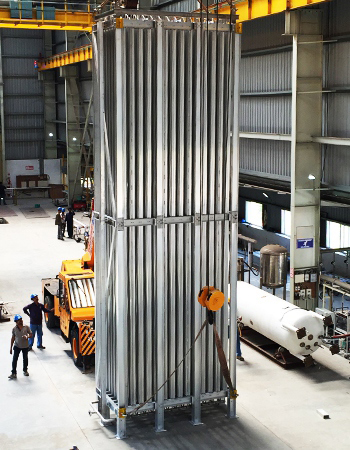

ACRYO offers Ambient and Forced draft Air Vaporizers, LNG Vaporizers, Dual gas purging Vaporizers, Hot water Bath Vaporizers for all required medium of heat transfer.
MAIN CHARACTERISTICS
- Steel circular flange is used for liquid inlet and gas
- Aluminum in line with AW 6060 (EN573-3)
- Design Pressure: 40 bar - 250 bar
- Test Pressure: 60 bar - 375 bar
- Capacities in the above table 75% relative humidity and 20 °C depending on temperature were determined
- Note: Capacity determination for LIN evaporator is based on 8 hours working time
Nitrogen capacity (Nm3/h) Surface area (m2) Profile number (pcs/pcs) profile length (mm) Inlet flange diameter (Ø) Outlet flange diameter (Ø) Н1 (mm) L1 (mm) in accordance with standards, evaporators can be manufactured with desired capacities, depending on the atmospheric conditions. Stainless steel piping is used in the production of high pressure evaporators.
Highlights
- Unique honeycomb assembly procedure which eliminates weld cracks.
- during operation, transportation and handling.
- Standard ratings 50-5000 Nm3/ hr in single unit.
- MAWP up to 40 bar for extruded aluminium fins.
- MAWP up to 500 bar for SS Lined extruded aluminium fins.

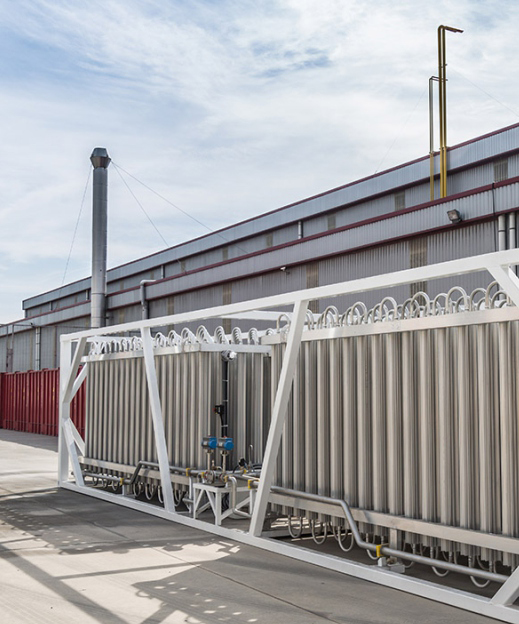

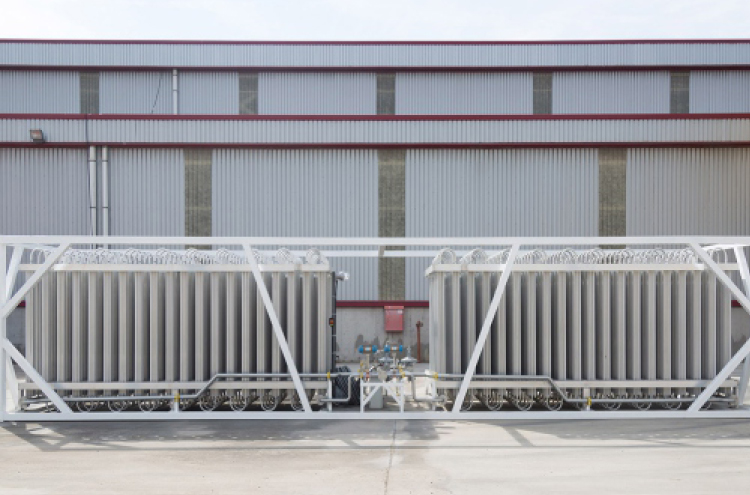

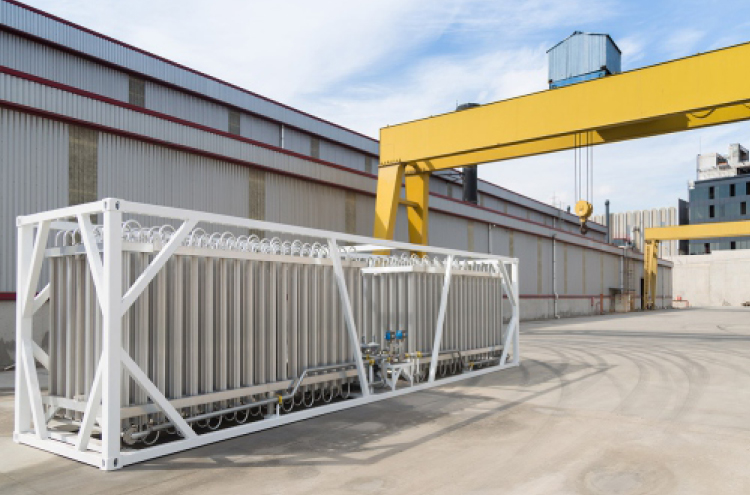

- Mobile ISO Skid mounted vaporizers for offshore applications.
- Module lengths ranging from 2.5m - 9m.
- Available for Oxygen, Nitrogen, Argon, Carbon-di-oxide, LNG, Hydrogen & Helium.
ACRYO offers Ambient and Forced draft Air Vaporizers, LNG Vaporizers, Dual gas purging Vaporizers, Hot water Bath Vaporizers for all required medium of heat transfer.
