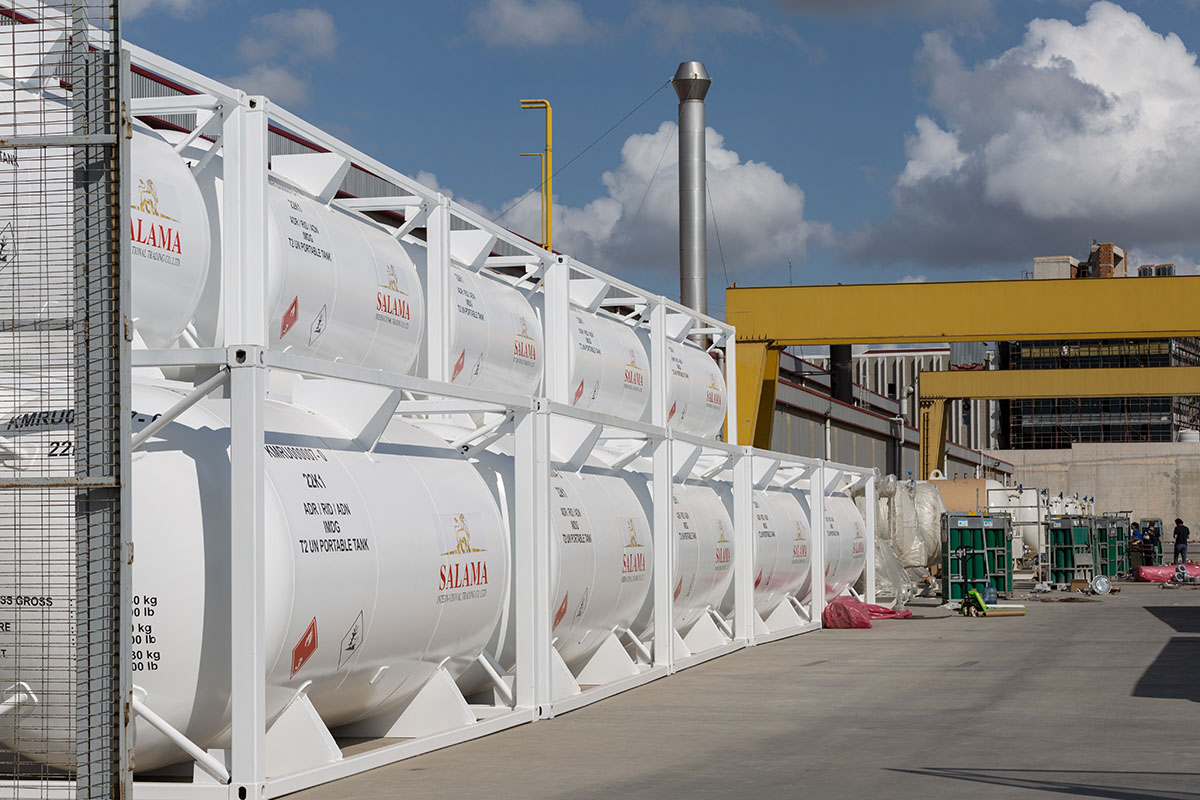

Cryogenic ISO Container
GENERAL FEATURES
- ISO 1161: Cargo Containers - Corner and Intermediate Joints
- ISO 668: Cargo Containers - Classification, Dimensions and Gross Masses
- ISO 6346: Freight Containers - Coding, Identification and Marking
- ISO830: Freight Containers - Terms
- ISO1496/3: Cargo Containers - Tank for Liquids, Gases and Compressed Dry Cargoes
Containers Features and Tests
- ASME Part VIII Part 1: ASME Pressure Vessel Construction Rules
- IMDG: International Standard for Dangerous Goods at Sea
- CSC: International Safe Container Convention
- TIR: Contract for International Carriage of Goods
- UIC: International Union of Railways Standard
DESIGN CONDITIONS
| Design Code | : EN 14025 / ADR - RID - ADN - IMDG - UIC - CSC - TC - TIR | Design Pressure | : 0.5 Bar - 7 Bar |
| Container Type | : 1CC | Design Temperature | : -40 °C / +60 °C |
| Container Dimensions | : 20' | Material | : Steel Tanks EN 10025 Aluminum Tanks EN 14286 |
| Design Approval | : Bureau Veritas, Lloyd's Register | Wave Breaker | : In accordance with the design standard |
| Tank Type | : Conical, Cylindrical Elliptical, D-Shape | Radiographic Control | : In accordance with the design standard |
| Item to be Transported | : Diesel, Jet Fuel (Jet A-1) | Heating and Insulation | : Depending on the product type |
| UN No. | : 1202, 1203, 1863 | ||
| ADR Tank Code | : LGBT | ||
| Tank Class | : Class 3 | ||
| Operating pressure | : 0.12 Ba | ||
| Test Pressure | : 1 Bar - 10 Bar |
